Daya Magnetik

Sampeyan bisa yakin kanggo tuku Power Magnetics saka pabrik JASN lan kita bakal menehi layanan sawise-sale paling apik lan pangiriman pas wektune.

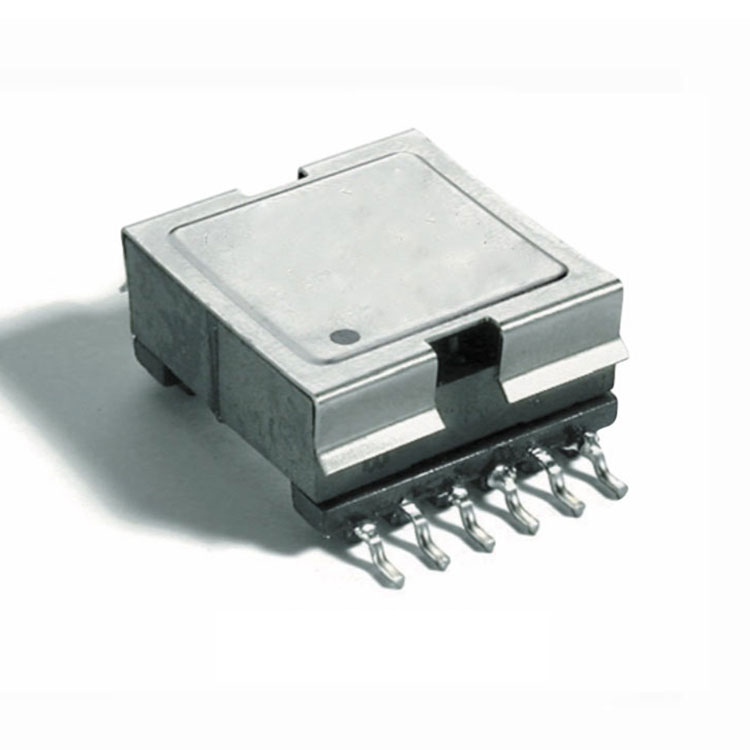

Model: EFD2002-002

Model:EFD2002-002

Kirim Pitakonan

Unduh PDF

Grosir rega murahDaya Magnetikdigawe ing China. JASN minangka skala gedheDaya Magnetikprodusen lan supplier ing China.



Daya Magnetik


Fitur


Patuh karo syarat RoHS.
Kisaran suhu operasi: -40â nganti +125â.
Kisaran suhu panyimpenan: -40â nganti +125â.


Spesifikasi Listrik @ 25â




OCL:

Pin 1,2-3,4 = 42uH±10%. @100KHz/0.1V

Pin 1,2-3,4 = 37,8uH Min. @100KHz/0.1V, 2.6A



Rasio giliran:

Pin 1,2-3,4:12,11,10-,9,8,7 = 3:1±3%. @100KHz/1.0V

Pin 1,2-3,4:5-6 = 3:1±3%. @100KHz/1.0V

LK:

Pin 1,2-3,4 (short7,8,9,10,11,12,5,6) = 0.65uH Maks @100KHz/0.1V





D.C.R:

Pin 1,2-,3,4 = 60mΩ Maks.

Pin 5-6 = 195mΩ Maks.

Pin 12,11,10-9,8,7 = 15mΩ Maks.



Hi-POT:

PRI--SEC: 1500V AC/5mA/1S.

PRI, SEC--Inti: 500V AC/5mA/1S.
